High-Speed ISP Programmer

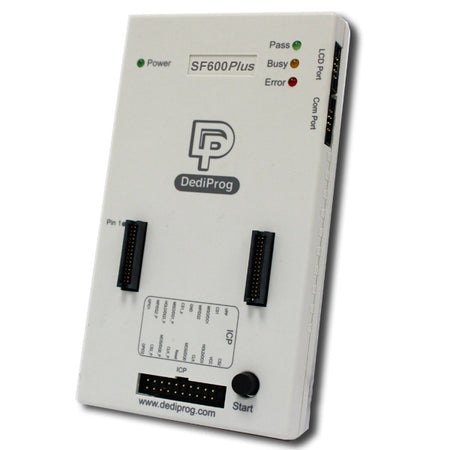

SF600Plus is high speed "in System Programming" programmer to update the SPI Flash soldered on board (In Circuit Programming) or in the socket adaptor (Off line programming). The programmer is easily controlled by the computer DediProg Software through the USB bus offering friendly interface and powerful features to users.
- High speed USB
- Higher SPI performances
- Support Single, Dual and Quad IO (ISP mode only)
SF600Plus is an upgrade version of SF600. The main difference is that SF600Plus embeds a 8GB memory which allows standalone programming.
What's included
- 1 x SF600Plus Programmer
- 1 x USB Cable
- 1 x AC Power Adaptor
- 1 x ISP Cable (ISP-600-CB1-G)
- 1 x SF100 2.54mm 2*4 ISP Cable (ISP1-CB)
- 1 x SF600 Universal Adaptor (ADP-SF600-TO-SF100)
- 1 x CD-ROM (Included Software, specifications and user manual)
My AutoQuote | Easy & Fast
Easily generate and keep track of your quotes. You can also place an order based on an active quote. Both Quotes and Orders are organized for you under your account page.
More informationSpecifications
Support all Serial Flash | Yes |
USB High speed | Yes |
In Circuit Programming | Yes |
Off line Programming | Yes |
Stand Alone mode | Yes |
Multi-Programmers USB | Yes |
Engineering GUI | Yes |
Command Line | Yes |
Production GUI | Yes |
Backup Boot Flash | Yes |
Single IO | Yes |
Dual IO | Yes |
Quad IO | Yes |
Isolation Free | Yes |
Product information
Features |
|
The SF600Plus USB software tool chain offers high flexibility and fit the different and highest requirements: | |

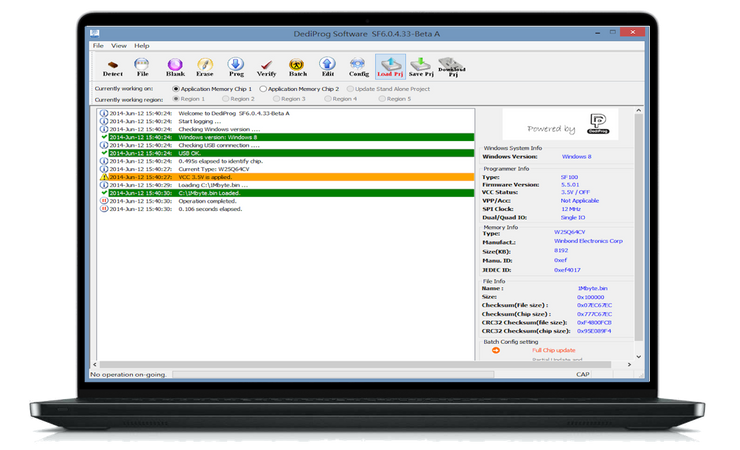

Engineering Graphic User Interface | For engineers and expert to access advanced features for development, repairing etc. |
Production Graphic User Interface | For operators in production to control multiple programmers and improve the throughput. |
Command line interface | Customer software can control the multi SF600Plus programmers. |
Hardware | SF600Plus is designed with ISP header, through an appropriate connector, users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status. Please refer to Table 1 for the SF600Plus 2x10 header pin out. DediProg also provides the SF600Plus ISP Cable which is used to connect the programmer to the 2X6 2.54mm ISP Pin Header on board, please refer to Table 2 for the SF600Plus ISP Cable 2x6 pin out. |
Hardware Requirement for ISP | To have a clear understanding on the different ISP or backup boot methods and different reference schematics, please download our dedicated application notes above. |
