The wide-protocol USB host adapter | USB 2.0 High Speed link to the host PC
The Binho Pulsar is a professional USB host adapter for connecting a PC directly to hardware circuits. It supports six digital protocols — I2C, SPI, UART, RS-485, 1-Wire and CAN-FD — with each protocol available on dedicated pins.
With a USB 2.0 High Speed connection, 6 configurable GPIO pins, programmable DUT power from 1.2 V to 3.3 V, and a robust machined-aluminum enclosure, Pulsar provides a versatile solution for hardware development, verification, testing and programming.
| Feature | Specification |
|---|---|
| USB Interface | USB 2.0 High Speed, 480 Mbps |
| Host Connector | USB Type-C |
| Supported Protocols | I2C, SPI, UART, RS-485, 1-Wire, CAN-FD |
| GPIO | 6× digital I/O |
| DUT Power | Programmable 1.2 V to 3.3 V |
| SPI | Up to 50 MHz Controller / 16 MHz Target |
| I2C | Up to 1 MHz |
| UART | Up to 2 Mbaud |
| RS-485 | -7 V to +12 V common-mode input |
| CAN-FD | Up to 5 Mbps |
| 1-Wire | 3.3 V and 5 V |
| LEDs | 5× RGB status LEDs |
| Enclosure | CNC-machined aluminum |
| Cooling | Fanless |
| Mounting | Integrated mounting holes |
| Software | Mission Control, Python SDK, C/C++/C# SDKs |
| Operating Systems | Windows, macOS and Linux |
| SKU | BIN105 |
The specifications above are taken from Binho's current product information.

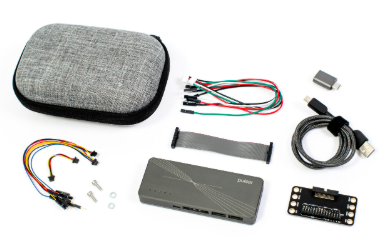

What's included
Binho Pulsar USB Host Adapter
1× Binho Pulsar USB Host Adapter
Differential Port Kit
1× 4-pin JST PH cable with female headers
1× 4-pin JST PH cable with male headers
Dedicated I2C Port Kit
1× 4-pin JST SH (Qwiic-compatible) to 4-pin JST SH cable
1× 4-pin JST SH (Qwiic-compatible) cable with male headers
1× 4-pin JST SH (Qwiic-compatible) cable with female headers
Multifunction Port Breakout Kit
1× 30-conductor IDC ribbon cable
1× ribbon cable to 2.54 mm pitch header breakout board
USB Kit
1× USB Type-C to Type-A cable
1× USB Type-A to Type-C adapter
Mounting Kit
2× mounting screws
2× washers
Carry Case
1× Custom protective zippered carry case
Legacy Fixture Adapters
1× Total Retrofitter Pro adapter for I2C
1× Total Retrofitter Pro adapter for SPI
My AutoQuote | Easy & Fast
Easily generate and keep track of your quotes. You can also place an order based on an active quote. Both Quotes and Orders are organized for you under your account page.
More informationSpecifications
USB Interface
-USB 2.0 High Speed
-480 Mbps
- USB Type-C host connection
SPI
-Controller and Target modes
-Up to 50 MHz Controller
-Up to 16 MHz Target
-All 4 SPI modes
-Up to 4 chip-select signals
-Configurable MSB / LSB
-Maximum transaction size: 16 KB
-1.2 V to 3.3 V
I2C
Controller and Target modes
-Up to 1 MHz
-Two independent I2C buses
-7-bit and 10-bit addressing
-Clock stretching
-Configurable pull-up resistors
-Maximum transaction size: 16 KB
-1.2 V to 3.3 V
UART
-Up to 2 Mbaud
-Hardware flow control
-1.2 V to 3.3 V
RS-485
-Half-duplex
--7 V to +12 V common-mode input
CAN-FD
-Up to 5 Mbps data rate
-Optimized for use in 12 V systems
1-Wire
-Standard and Overdrive speeds
-3.3 V and 5 V operation
GPIO
-6× digital I/O pins
-Configurable as interrupts-
PWM support
-1.2 V to 3.3 V
DUT Power
-Programmable downstream power
-1.2 V to 3.3 V
Hardware
-CNC-machined aluminum enclosure
-Fanless design
-5× RGB status LEDs
-Integrated mounting holes
-Two mounting holes with hardware included
Software
-Mission Control desktop application
-Python SDK
-C / C++ / C# SDKs
-Native support for Windows, macOS and Linux
-Browser-based operation available through Mission Control
Product information
The Binho Pulsar is a wide-protocol USB host adapter designed for hardware development, firmware development, verification, automated testing and memory programming.
Pulsar provides six digital buses on dedicated pins: I2C, SPI, UART, RS-485, 1-Wire and CAN-FD. The protocols can operate simultaneously, alongside six configurable GPIO pins for functions such as interrupts, resets and chip selects.
The USB 2.0 High Speed interface provides a 480 Mbps connection to the host PC. Pulsar also provides programmable downstream power from 1.2 V to 3.3 V for powering a device under test.
For hands-on development, Binho Mission Control provides a cross-platform graphical interface for creating transactions, monitoring buses and running repeatable sequences. The Python SDK enables automation and includes Jupyter notebook examples, while C, C++ and C# SDKs provide direct device access for integration into software and automated test frameworks.
Pulsar can also be used for I2C EEPROM and SPI Flash programming through Mission Control's Memory Programmer, including read, write, verify, blank-check and erase functions.
The unit features a CNC-machined aluminum enclosure, five RGB status LEDs, integrated mounting holes and a fanless design. It is supplied with the required cables, adapters, mounting hardware, protective carry case, and Total Retrofitter Pro adapters for I2C and SPI.
Typical applications include:
-Device driver development
-Firmware development and verification
-Proof-of-concept development
-Automated hardware and firmware testing
-FLASH and EEPROM programming
SKU: BIN105
