In-Circuit Debugger Software
PEmicro's ICD in-circuit debugger software is a powerful tool for debugging code. The user connects from the PC target via one of PEmicro's compatible hardware interfaces. The processor's debug mode is then used to give the user access to all on-chip resources.

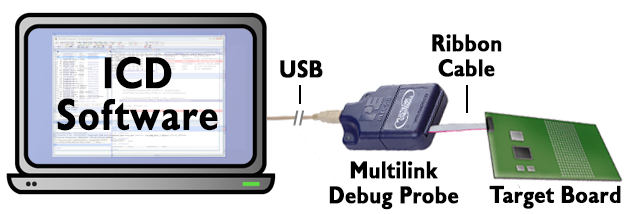

ICD: USB to Target via PEmicro Multilink Debug Probe
ICD software is a great tool for creating repeatable testing., calibration, and debugging procedures.
Hardware-Based License
The license that activates ICD will reside on a Multilink debug probe or Cyclone programmer. The user who activates the software will choose a hardware interface on which to permanently install the license. The allows that interface to work with ICD on any machine where a supported version of the software is installed.
Supported Devices
There is a variety of ICD software available; each version supports a different MCU architecture. To see if the device you are interested in is supported, please view the corresponding programming algorithm list.
What's included
These include:
- Status Window - command prompt for keyboard commands
- Code Window - displays disassembled machine code or the user's source code
- Variables Window - displays value of application variables
- Memory Window - allows user to view and modify memory map
- CPU Window - displays current state of registers
- Register Interpreter - allows modification of bit fields within the processor's peripheral registers
Source Level Debugging
Once a valid map file (generated by the command line assembler) is loaded into the ICD via the LOADMAP or LOADALL command, source level debugging is enabled. When the PC is at a location for which there is source code available, the source code will be shown in the code window. The user can set a breakpoint by using the BR command, or by clicking the appropriate line in the code window, then clicking the right mouse button and selecting “Toggle a Breakpoint.”
